Why purchase an 8K TV and no longer 4K or Complete HD? The query is regularly requested, as technological choices appear to advance quicker than our wishes. Extra pixels, extra sharpness… however to what extent is our eye ready to inform the variation? In the back of this query lies an impressive mathematical software utilized in sign processing and optics: Fourier research.
A 4K tv shows about 8 million pixels, in comparison to 33 million for 8K. On paper, it is an avalanche of additional main points.
However the human eye isn’t a super sensor: its skill to differentiate main points is dependent upon viewing distance and visible acuity. This is, if you’re too a ways from the display screen, the additional pixels develop into invisible. A 55-inch 8K display screen seen from 3 meters will likely be perceived… nearly like a 4K display screen.
The boundaries of our visible belief
There are ways that permit a sign (symbol or sound, for instance) to be decomposed into its spatial or temporal frequencies. For a picture, reminiscent of the ones displayed via the televisions we’re speaking about, low frequencies correspond to huge uniform surfaces (blue sky, clean wall), whilst excessive frequencies translate bits and bobs (grasses, pores and skin texture).
Our eyes, like a digicam, have just a restricted skill to understand those excessive frequencies. This skill is much more dependent at the visible acuity of each and every particular person. Thus, the human eye has a most decision on the subject of 120 pixels in keeping with angular level.
This acuity corresponds to the facility to differentiate an object of fifteen centimeters at a distance of 1 kilometer, or a grain of mud at 3 meters: it’s transparent that the general public have a weaker visible acuity!
In imaging, this limitation is named the “cutoff frequency”: past that, main points are too nice to be outstanding, without reference to the richness of the picture.
Making use of this good judgment, 8K best turns into in reality helpful if:
the display screen could be very massive,
or take a seat very shut,
or if we zoom in at the symbol (for instance in skilled retouching).
By means of the way in which, the utmost frequency that our eye can seize is already reached with 4K. In different phrases, 8K “encodes” main points… that our visible machine can not learn.
A formidable mathematical software, the “Fourier transform”, invented via Joseph Fourier in 1817, lets in the quantification of this impact.
The Fourier grow to be unearths the “frequency content” of a sign, in different phrases, its distribution between other frequency bands. So let’s ask our query once more, however this time mathematically: “Do these extra pixels still correspond to observable spatial frequencies?”
What does the Fourier grow to be say
Let’s illustrate this with a visible instance of a picture and its Fourier spectrum. If for a valid or for a radio sign, the Fourier grow to be itself is a one-dimensional sign, for a two-dimensional symbol, the Fourier spectrum is itself in two dimensions with frequencies in each and every course of area.

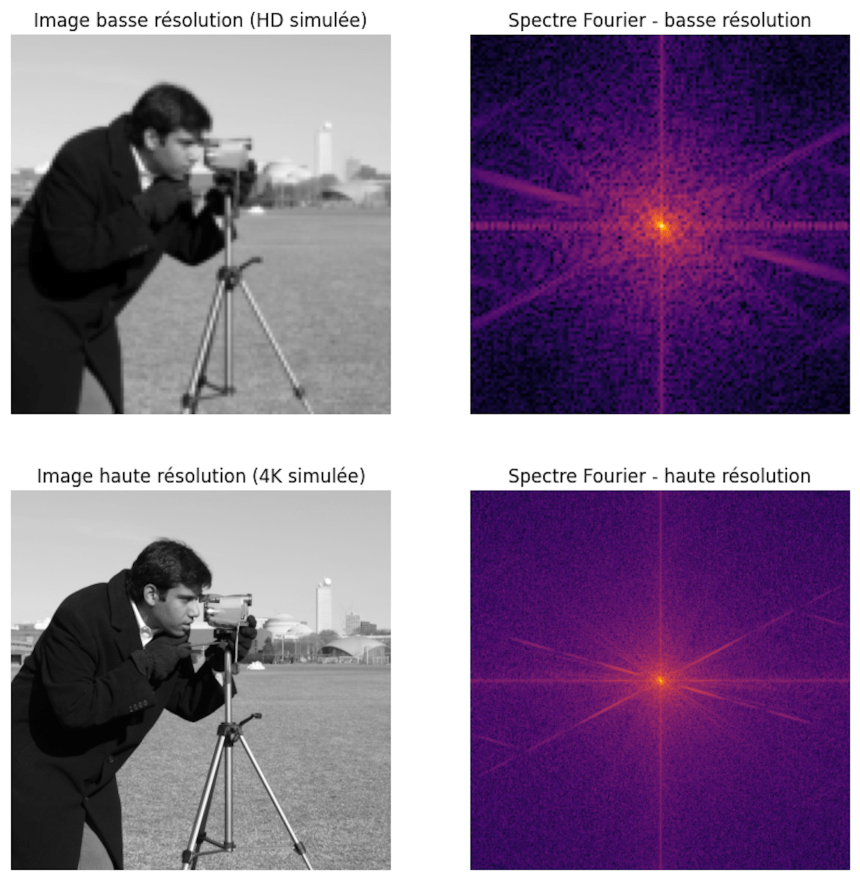

The picture proven in two other resolutions and the corresponding Fourier grow to be. USC-SIPI Symbol Database for Pictures; Saad Benjelloun for modifying, supplied via the creator
Within the instance, we see a low-resolution symbol (simulated HD) and its Fourier spectrum, in addition to a high-resolution model (simulated 4K) and its spectrum. The middle of the sq. corresponds to low frequencies, across the worth (0,0).
Within the high-resolution model (simulated 4K), the spectrum incorporates extra excessive frequencies (coloured spaces in opposition to the sides, versus black spaces for the spectrum of the Complete HD model), which corresponds to the extra main points visual within the symbol.
Use filters to cut back low and high frequencies
Let’s take a more in-depth take a look at what occurs when this spectrum is manipulated. Then we speak about filters.

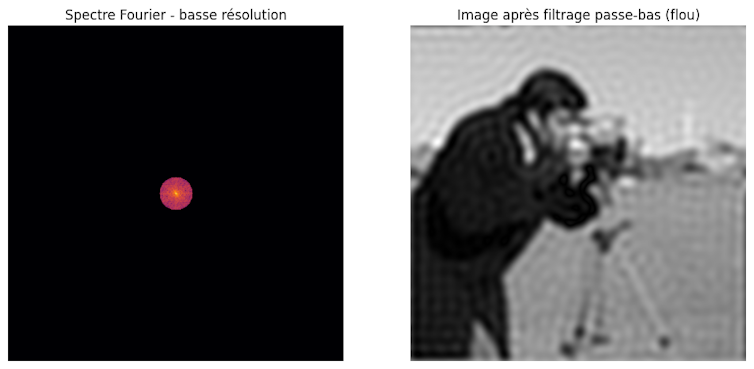

We clear out the unique symbol via putting off the excessive frequencies and permitting best the low frequencies to move (this is named a “low-pass filter”). Saad Benjelloun, supplied via the creator
Whilst the unique symbol is sharp and incorporates a large number of element, we see that the filtered symbol, with the excessive frequencies got rid of, turns into blurry, the nice contours disappear. We see this within the new Fourier spectrum after filtering: best the low frequencies within the heart are stored, the excessive frequencies (element) are got rid of.
That is precisely what occurs whilst you compress the picture an excessive amount of or whilst you show an HD symbol on a big 4K display screen: the excessive frequencies are restricted. Additionally, this is why why 4K and 8K TVs use “upscaling” and symbol enhancement ways to take a look at to reconstruct and enlarge those lacking excessive frequencies and thus be offering higher visible high quality.

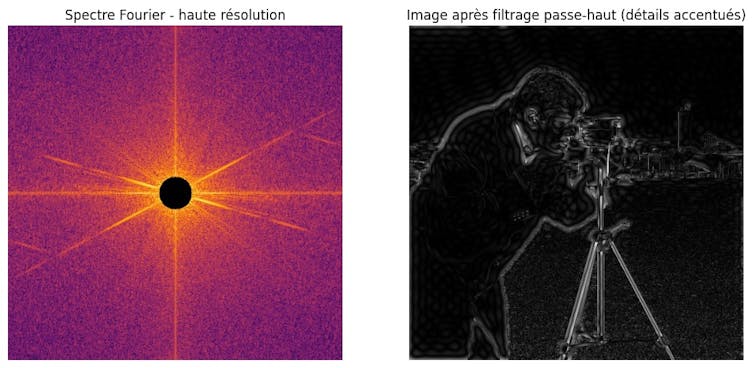

We clear out the unique symbol via putting off the low frequencies and permitting best the excessive frequencies to move (this is named a “high-pass filter”). Saad Ben Jelloun, supplied via the creator
By contrast, in a filtered symbol with low frequencies got rid of, best contours and bits and bobs stay, like an edge detector. Within the Fourier spectrum, the middle (low frequencies) is got rid of, leaving best the excessive frequencies across the edges.
So, is it completely important to shop for 8K to observe your subsequent favourite wearing tournament? Now not essentially. Until you could have an excessively massive front room!
