Because of the decline in the cost of silicon sun cells, in addition to their dimension, the sight of sun panels on family roofs has turn into acquainted. On the other hand, solar power, like many different sustainable varieties of power, is intermittent. At top instances, corresponding to sunny summer time days, the grid is flooded with solar power, whilst all the way through the night and wintry weather, when power is maximum in call for, the availability is decrease. To make sure the supply of power on call for, garage should be incorporated into the grid.
Pumped hydro is one instance of a in style power garage generation through pumping water from a decrease reservoir to the next one, and electrical energy is produced on call for through operating the water again via generators. The unfold of those vegetation, on the other hand, is restricted through the volume of appropriate geographical places. A generation that doesn’t tolerate those obstacles is the electrochemical battery. Examples are lithium-ion batteries found in on a regular basis electronics. On a bigger scale, firms are beginning to spend money on huge batteries that reinforce the grid. The dominant generation for such huge batteries is these days lithium iron phosphate (LFP). A document through the World Power Company (IEA) predicts that call for for lithium will build up through greater than 40 instances in 2040 in comparison to 2020, principally because of this want. Lithium mining, on the other hand, comes with important geopolitical and humanitarian issues. If lithium mining has an important detrimental affect on native well being, water provides, biodiversity and soils, are we able to declare that it’s serving to us transfer in opposition to a sustainable long run?
Thermal garage instead for electrochemical batteries
Some other selection is thermal power garage, by which power is saved within the type of warmth.
Thermophotovoltaic machine: A warmth emitter emits radiation (principally within the infrared) towards a. a photovoltaic cellular tailored to transform infrared radiation into electric power. Vera Moerbeek, writer supplied (no reuse)
Because of the prime power density, abundance and occasional charge of garage fabrics, thermal garage seems very promising for long-term garage. That is the primary in the back of sun water warmers. On a bigger scale, it’s principally used at the side of concentrated solar energy vegetation (CSP), such because the Crescent Dunes solar energy undertaking in america or the Andasol sun plant in Spain, for instance. In those installations, step one is to transform the solar’s power into warmth the use of huge mirrors, parabolic or smaller flat mirrors that practice the Solar, which pay attention the daylight and warmth a big tank of molten salt. The second one step is composed of changing the warmth into electrical energy: the warmth saved within the salt drives the turbine.
Thermal garage applied on this manner has remained marginal, because the generators utilized in CSP turn into extra environment friendly as they get greater, that means that the concept that is usually now not cost-effective at decrease scales and subsequently calls for very huge vegetation, involving huge start-up investments and upkeep prices. Even supposing there are smaller CSP vegetation with incorporated thermal garage, such because the linear Fresnel plant at Llo in southern France, they’re even rarer.
The potency of thermal garage is a problem, as warmth is hard to transform into “useful” power, together with electrical energy: the potency of this procedure is basically restricted through what’s referred to as Carnot’s legislation. As an example, at 300°C, the theoretical most conversion potency is set 50%, this means that that the true potency will probably be even decrease. Via comparability, lithium-ion batteries, which don’t seem to be restricted through the similar bodily legislation and feature been optimized for many years, exceed 90%.
Whilst the potency of the conversion of warmth to electrical energy can be stepped forward at upper temperatures, generators hardly ever tolerate such increased temperatures.
The usage of photovoltaics to transform thermal radiation into electric power
On the other hand, there may be in a different way to show warmth into electrical energy, particularly via radiation: that is the primary in the back of the sun cells you notice on rooftops and sun farms. Standard sun cells convert power from the solar. By contrast, the theory in the back of so-called thermophotovoltaic gadgets (TPVs for brief) is to gather (principally infrared) radiation from a highly regarded object, the place power is saved, and convert it into electrical energy. As an example, silicon melts at 1414°C and graphite will also be heated to greater than 2000°C. At those prime temperatures, the Carnot restrict shifts to 83% and 87% respectively. In apply, experiments at MIT and the College of Michigan have now raised the conversion potency to greater than 40%.

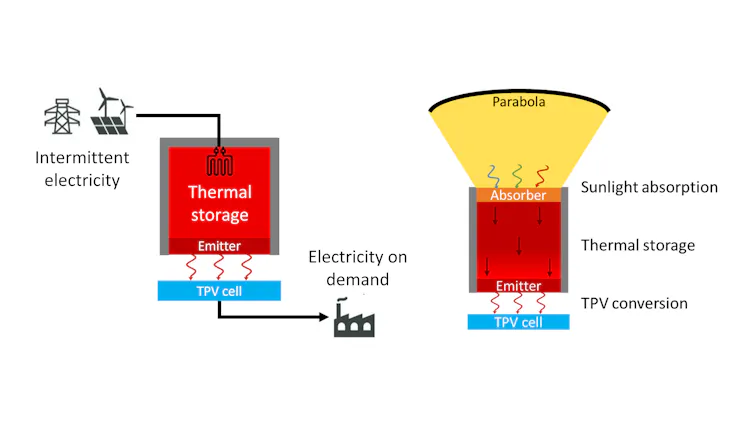

Two varieties of thermal power garage the use of TPV cells to transform warmth into electrical energy. That the. left: electrical energy from the grid is used (at top instances) to warmth the thermal garage. Proper: concentrated sun radiation is used to warmth the thermal garage (SISTPV). Vera Moerbeek, writer supplied (no reuse) More than a few software designs
Essentially the most lately evolved software, now showing in the marketplace, has a garage medium within the type of a block of graphite or silicon, for instance, heated through electrical energy. It’s subsequently very similar to a lithium-ion battery, however works through making successive power conversions from “electrical to thermal to electrical energy” as a substitute of “electrical to chemical energy to electrical energy”.
On the other hand, it will be attention-grabbing to warmth our garage medium immediately from the Solar, in order that the software turns into a right away supply of renewable power.

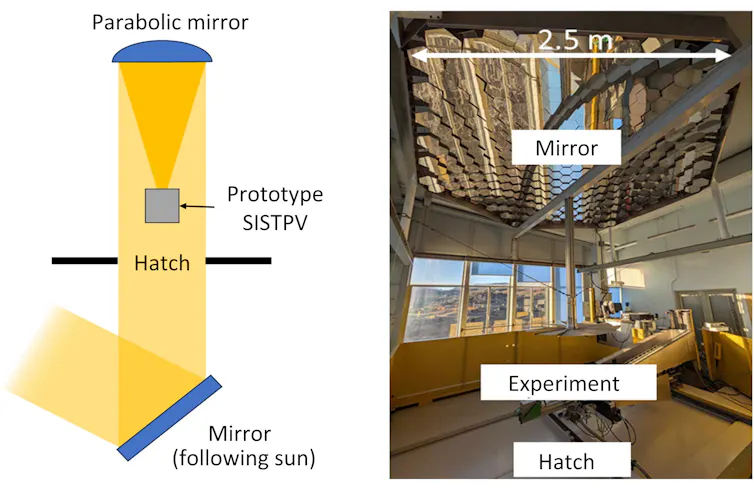

Schematic and {photograph} of the experimental setup of the SISTPV prototype, situated at PROMES. laboratory on the Nice Sun Furnace in Odey, France. Monitoring mirrors (situated outdoor the construction, beneath the experiment) direct sun radiation via an aperture onto a parabolic reflect that concentrates the sunshine in order that the focus is immediately on best of the experiment (similar to the picture at the proper within the earlier representation). Vera Moerbeek
In our setup on the PROMES laboratory, very easily situated within the sunny south of France, the garage medium (graphite all the way through our first exams) is heated through concentrated radiation from the Solar, the use of a parabolic reflect and a monitoring reflect, and will also be known as “solar to electric heating” or storage-integrated sun TPV (SISTPV). It’s the first prototype of the SISTPV machine. A very powerful merit in comparison to CSP with molten salt garage is that the TPV battery might be cost-effective at a way smaller scale.
Even supposing important paintings stays to strengthen each the potency of TPV cells themselves and the whole potency of thermal batteries, SISTPV gives a promising trail to reinforce the transition to renewable power. Via combining the gathering, garage and era of electrical energy in one, compact and doubtlessly cost-effective software, it transforms an intermittent power supply – the Solar – right into a cast one, making solar energy to be had on call for.
