Any longer, the total functionality of structures should combine calories saving and indoor air high quality (which should be freed from pollution, reminiscent of pathogenic microorganisms, reminiscent of viruses). Air flow techniques play a key position. Along with the previous rules according to the airflow that characterizes those gadgets, extra signs want to be evolved to measure their potency (whether or not they’re according to carbon dioxide CO₂, on humidity or particularly on pollution).
The construction sector faces more than one demanding situations associated with calories intake and indoor air high quality, which calls for an international imaginative and prescient for structures in addition to new building.
An very important requirement for the development or renovation of energy-efficient structures is to take action whilst keeping up a wholesome and relaxed indoor atmosphere, additionally bearing in mind long term adjustments and use.
Combining convenience and effort functionality would additionally make it imaginable to steer clear of conflicts that pressure, as an example, to arbitrate between calories financial savings and the chance of mould expansion.
Air flow to satisfy the demanding situations of total construction functionality
Within the face of those basic functionality demanding situations, the position of air flow techniques is very important. Certainly, when efficient, air flow techniques change stale indoor air with contemporary out of doors air. They thus assist to enhance the standard of the indoor atmosphere, to steer clear of the buildup of pollution, over the top humidity, in addition to the presence of pathogens reminiscent of viruses, all whilst controlling the calories losses related to heating and cooling the incoming air.
What’s air flow? Air flow: The method in which “clean” air (generally outdoor) is offered into an area in a managed way, and off air is exhausted. This will also be completed naturally (herbal air flow) or by means of mechanical way (managed mechanical air flow or VMC). Clever air flow: air flow with everlasting adjustment of the drift over the years and, most likely, relying at the location, with the intention to be certain the specified air high quality within the closed area, whilst minimizing calories intake. Hygro-adjustable air flow: clever air flow that adjusts drift over the years relying on humidity and site.
Between the out of doors air to be heated (or cooled) and fan intake, air restoration accounts for 30 to 50% of calories intake in structures and much more in extremely calories effective structures.
Structures, giant customers of calories
You will need to believe the problem of calories intake in structures. The purpose is to scale back the affect of the development sector on emissions (CO₂) into the ambience.
Certainly, the development sector represents 44% of French calories intake and nearly 42% of worldwide annual carbon dioxide (CO₂) emissions. Structures are the most important customers of calories in Europe (inside the Ecu Union, this corresponds to 40% of calories utilized in 2021 and round a 3rd of energy-related greenhouse fuel emissions).
Indoor air air pollution and well being results
Every other significant issue going through the development sector is subsequently indoor air high quality. In Europe, we spend between 60 and 90% of our time in closed environments (properties, workplaces, colleges). Globally, indoor air air pollution is answerable for 2.9 million deaths yearly in 2021, together with greater than 309,000 deaths of kids beneath 5, in step with the Global Well being Group.
In France, indoor air air pollution is accountable for almost 20,000 deaths each and every yr and a complete value of €19.5 billion in a yr.
The learn about regarded on the hurt, relating to public well being, because of indoor air high quality. The analysis group used a scale that measures years of wholesome existence misplaced because of incapacity led to by means of air high quality (measured in μDALI in keeping with particular person in keeping with yr).
His effects display that the well being affect of deficient air high quality lies someplace between the well being results of visitors injuries (4,000 μDALI in keeping with particular person in keeping with yr) and middle illness from all reasons (11,000 μDALI in keeping with particular person in keeping with yr). Be aware that those estimates take into accout all resources of indoor air high quality degradation, aside from passive smoking and radon.
Harmonization of indoor air high quality and effort
Following the Hub Air Energie challenge that introduced in combination stakeholders coping with indoor air high quality in structures, an cutting edge framework for pondering that objectives to stability calories and indoor air high quality in structures will also be proposed, within the following order:
Prioritize sobriety: the most productive airflow is the only we don’t want when the resources of air pollution are decreased and strictly restricted.
The fitting air drift is the one who is renewed at the most productive time and in the most productive position, as an example thru clever air flow (we’re speaking about air potency).
Purify and filter out the air: If the primary two steps don’t reach the indoor air high quality targets, it will be important to filter out the incoming air and/or purify the air. (However this isn’t step one!)
The boundaries of the previous rules on air flow
Within the box of creating air flow, rules around the globe are nonetheless in large part prescriptive, together with minimal air drift necessities. As well as, they’re most commonly previous and occasionally beside the point for present eventualities.
Thus, in France, construction air flow rules date from the early Eighties (JO, 1982, amended in 1983. It calls for basic and steady air flow and describes the overall necessary provisions of the air flow set up. It determines the air drift charges to be extracted in each and every rainy room, relying at the general choice of rooms within the condominium.
However in apply, following this legislation, with the similar degree of air flow air drift, it’s imaginable to succeed in quite a lot of indoor air high quality signs; the latter will subsequently give other indications and subsequently end up to be kind of dependable as regards the potency of the air flow techniques.
Analysis paintings according to modeling thus presentations that all over the heating season, with the similar air flow air drift charges, it’s imaginable to procure a distinction of 40% within the reasonable focus of formaldehyde (a pollutant this is known as a carcinogen on the Ecu degree, editor’s observe) in positive bedrooms. All you need to do is alternate the assumptions concerning the air leakage distribution.
The only real criterion of airflow subsequently does now not appear related for comparing the effectiveness of air flow techniques to restrict the presence of formaldehyde, which might unfold to different pollution, and even to pathogens reminiscent of viruses.
Creator supplied (no reuse) Purpose: to guage the total functionality of air flow techniques
This prescription-based way contrasts with every other means that is composed of assessing the functionality of air flow techniques. However adopting a performance-based way, relatively than airflow necessities, calls for the usage of functionality signs according to indoor air high quality. This can be a giant impediment, as a result of it’s not simple to seek out an indoor air high quality indicator that promises well being as merely as what’s used for calories intake.
In some international locations (France, Belgium) performance-based approaches were evolved and used to estimate calories financial savings within the calculation, whilst ensuring positive (albeit imperfect) signs of fine indoor air high quality according to humidity and/or carbon dioxide. That is, amongst different issues, the case with clever air flow, which has proven ends up in making improvements to indoor air high quality whilst concurrently reaching calories financial savings, the usage of a decrease reasonable air drift.
However marketplace get entry to for these kind of cutting edge methods is recently hampered by means of normative regulatory constraints that range from nation to nation.
Air flow, the true “lung” of the construction
“Buildings benefit, under normal conditions of occupancy and use and, where applicable, taking into account the environment in which they are located, from air renewal and vapor evacuation, so that indoor air pollution does not endanger the health and safety of people and condensation can be avoided, except temporarily.”
This commentary stems from the new revision of the Regulation on Building and Housing. This idea will likely be prolonged to all sorts of air flow. Be aware that during France, a performance-based means has already been used because the Eighties for humidity-controlled air flow – which adjusts airflow in step with indoor humidity ranges. This kind of air flow already equips greater than 90% of latest residential structures.
Creator supplied (no reuse)

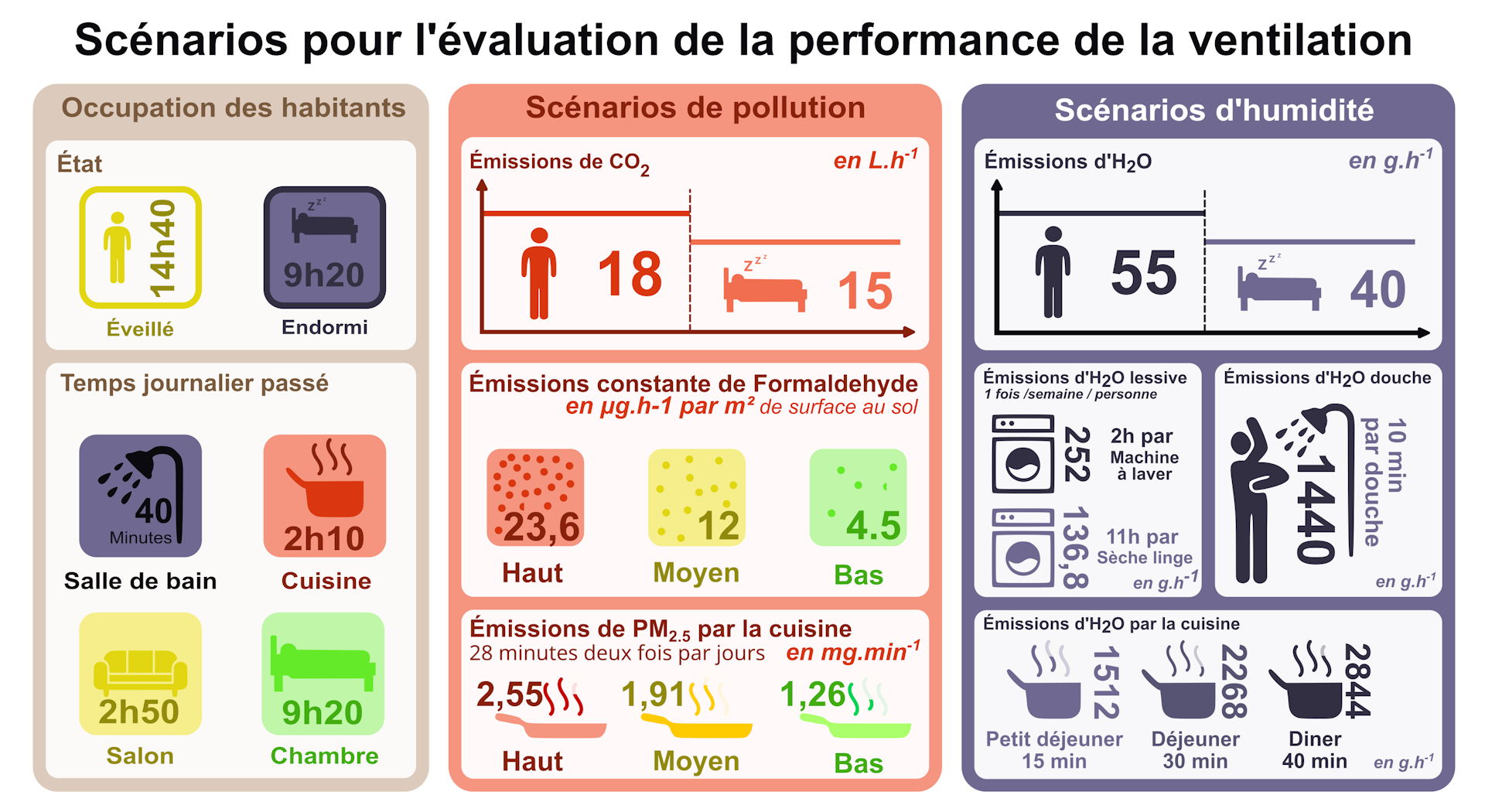

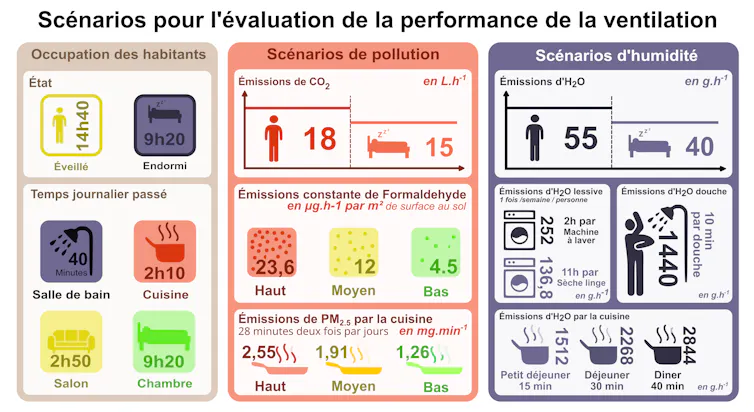

Six functionality signs known thru a consortium of global mavens might be used on this long term performance-based way:
4 certified indoor air qualities: according to publicity to carbon dioxide (CO2), fantastic particulate subject (PM2.5), formaldehyde and humidity;
two calories functionality {qualifications}: warmth losses by means of air renewal and electric intake of air flow motors.
Air flow should be noticed now not handiest as a way of saving calories, however above all as the true “lungs” of the construction, even though our requirements and rules nonetheless battle to combine it.
The authors thank Adem – grant quantity 2262D0108 – for investment Cerema’s contribution to the SmartAIR challenge, in addition to the Annex 86 professional staff of the Global Power Company (IEA-EBC program).
